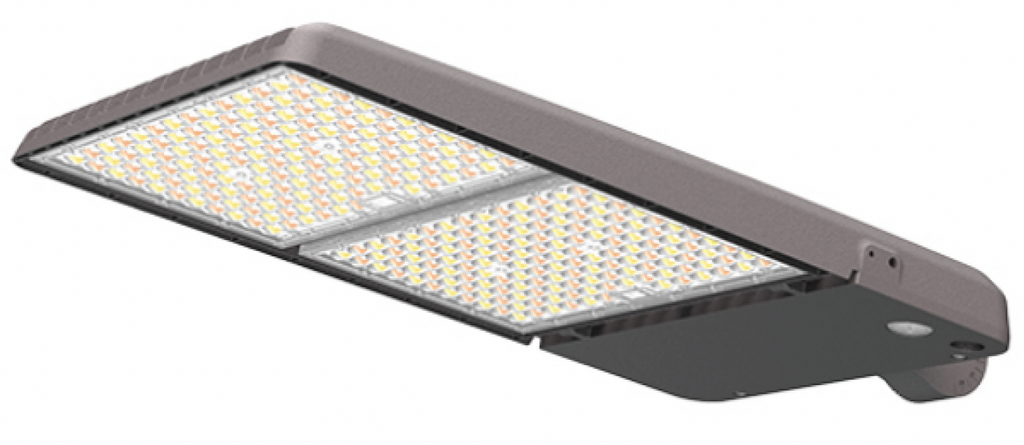

This document details the features, specifications, and options for the JEE-AR09 LED area light series designed for outdoor applications.
The lights feature die-cast aluminum housing, polycarbonate lenses, and offer high efficacy up to 170 lumens per watt, with wattage adjustable from 100W to 500W and selectable CCTs (3000K, 4000K, 5000K). They operate on AC120-277V or AC277-480V with 0-10V dimming, include surge protection (6KV or 10KV), and are rated IP65 for waterproofing. Light distribution is Type III, suitable for parking lots, roadways, and outdoor areas. Installation options include multiple mounting brackets, with optional plug-in or Zhaga sockets for motion sensors and photocell dusk-to-dawn functions. The series is UL and DLC Premium certified, backed by a 5-year warranty. Dimensions and weights vary by wattage, and accessories like photocells and mounting brackets are sold separately. The product line emphasizes field-adjustable wattage and CCT, high efficiency, durability, and versatile installation options for outdoor lighting needs.
| TYPE: | ARIA LIGHT 300W,350,W400,W450W,500W |
| MODEL NUMBER: |
AJ-R09-500W-L-PCX-3CCT-T3 |
| COLOR: | 3000K, 4000K, 5,000K |
| LUMENS: | Max 80,000lm |
| WARRANTY: | 5 Years |
